Routers and Switches

kremlin-router

  • Ubiquiti EdgeMax EdgeRouter Lite
  • ERLite-3
  • MAC ID: 1702KF09FC21964D8

Setup Notes

  • eth0 is set up as WAN.
  • eth1 is set up as a config network.
  • eth2 is set up as LAN.
  • Remember to tag/untag ports on switches.
  • Remember to set PVID on switch ports to set the default VLAN id for the port if needed.

Auto Firewall in Edge Router

I found this out after being totally confused how UDP traffic was getting through to OpenVPN server, even with no firewall rules established.

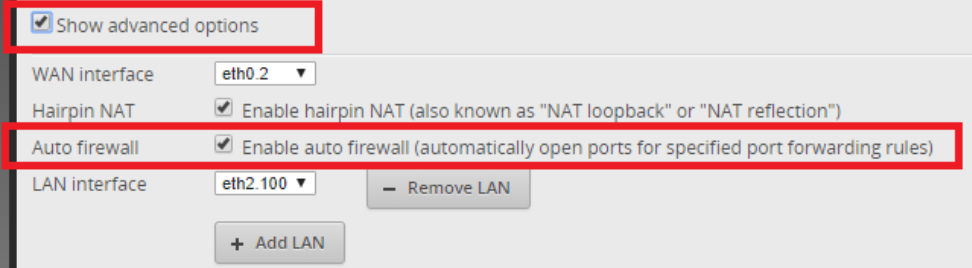

Turns out if you use port forwarding in EdgeRouter, there is a hidden "auto firewall" feature in the advanced options.

https://community.ubnt.com/t5/EdgeRouter/Where-do-Auto-firewall-rules-get-stored/td-p/1199244

WAN_LOCAL firewall rules

Dynamic DNS

To use dynamic DNS with Cloudflare, the record must exist in Cloudflare before it gets updated.

You can use the “Force Update” button in the EdgeMax UI to force an update. Go to Services tab, then the DNS tab, then the Force Update button.

Update (5/16/18): Changed to use duckdns.org instead of Cloudflare for dynamic DNS. Cloudflare deprecated version 1 of their API. This was what the EdgeRouter was using apparently, so I switched to Duck DNS. The Cloudflare record just is a CNAME that points to the Duck DNS domain.

See also: https://loganmarchione.com/2017/04/duckdns-on-edgerouter/

Xbox Live

  • UPNP2 is enabled, see: service upnp2
  • Example config that enabled an Open NAT type on Xbox One. The nat-pmp must be enabled. Secure-mode can also be left enabled.
upnp2 {
    listen-on eth2.100
    nat-pmp enable
    secure-mode enable
    wan eth0
}

kremlin-switch-5a

  • TP-Link 5-Port EasySmart
  • TL-SG105E (Ver 3.0)
  • Serial Number: 2178411003671
  • MAC ID: 70:4F:57:89:5C:D2
Port Destination VLAN PVID
1 server Untagged: 100 100
2 kremlin-nvr Untagged: 103 103
3 Untagged: 100 100
4 server-02 Untagged: 100 100
5 Trunk Tagged: 100, 103 1

Notes:

  • (2022-07-03) - Somehow the configuration on this switch was reset to a previous state. I noticed there is a “save config” option in the admin panel. Luckily, I had backed up the most recent config so I was able to restore that. I then went back and chose the “save config” option. Apparently this model doesn’t “save” the config automatically? I did not see this option in the 8-port models. This happened right after an internet outage in the area (at least the AT&T page showed there was one). I don’t know if there was a power flicker or something that caused the switch to reboot.

kremlin-switch-8a

TP-Link 8-Port POE EasySmart TL-SG108PE(UN) (Ver 2.6) Serial Number: Y19A020000484 MAC ID: CC:32:E5:59:99:94

Port Destination VLAN PVID
1 (POE) AG-SW-A Untagged: 103 103
2 (POE) A-NE-A Untagged: 103 103
3 (POE) A-NE-B Untagged: 103 103
4 (POE) AG-SE-A Untagged: 103 103
5 kremlin-ap * Untagged: 100, Tagged: 101, 102, 103 100
6 1
7 1
8 kremlin-switch-8b Port 1 Tagged: 100-103 1

*The AP sends Private Network traffic as untagged, so it will get tagged as VLAN 100.

VLAN Notes:

  • Tagged: Outgoing packets on the VLAN remain tagged.
  • Untagged: Outgoing packets on the VLAN are untagged.
  • Not a member: Switch drops outgoing VLAN packets on this port.
  • PVID: The default VLAN applied to incoming, untagged packets.

kremlin-switch-8b

  • TP-Link 8-Port Gigabit Unmanaged Pro Switch
  • TL-SG108E(UN) (Ver 4.6)
  • Serial Number: Y19B024001371
  • MAC ID: CC:32:E5:D2:11:13
Port Destination VLAN PVID
1 kremlin-switch-8a Port 8 Tagged: 100-103 1
2 1
3 2-SW-A Untagged: 100 100
4 2-SW-B Tagged: 100-103 1
5 2-SE-A Untagged: 100 100
6 2-SE-B Untagged: 100 100
7 2-MB-A Untagged: 100 100
8 Router (eth2) Tagged: 100-103 1

kremlin-ap

Wireless access point.

  • UniFi AP-AC-Lite
  • MAC Address: f0:9f:c2:3c:95:11
  • Alias: kremlin-ap
  • Channel: 1

AT&T Router

The router provided by AT&T is used as a passthrough. It handles the optical network termination/AT&T authentication or whatever. Did not find a way to bypass it like you could with Google Fiber.

  • Device Model: ARRIS BGW210-700
  • Serial Number: R91NG8JJ102787
  • MAC: 88:96:4e:88:df:61
  • Access Code: &0*3=26*7/
  • IP: 192.168.1.254
  • Subnet mask: 255.255.255.0
  • DHCP
  • Settings:
    • WiFi Operation: Off
    • DHCP: On (Needed for DHCPS-fixed passthrough)
    • Packet Filter Off
    • No NAT/Gaming rules
    • IP Passthrough:
      • Allocation mode: Passthrough
      • Passthrough mode: DHCPS-fixed
      • Passthrough MAC: f0:9f:c2:19:64:d8 (MAC address of router’s eth0 port)
      • Passthrough DHCP Lease: 10 minutes
